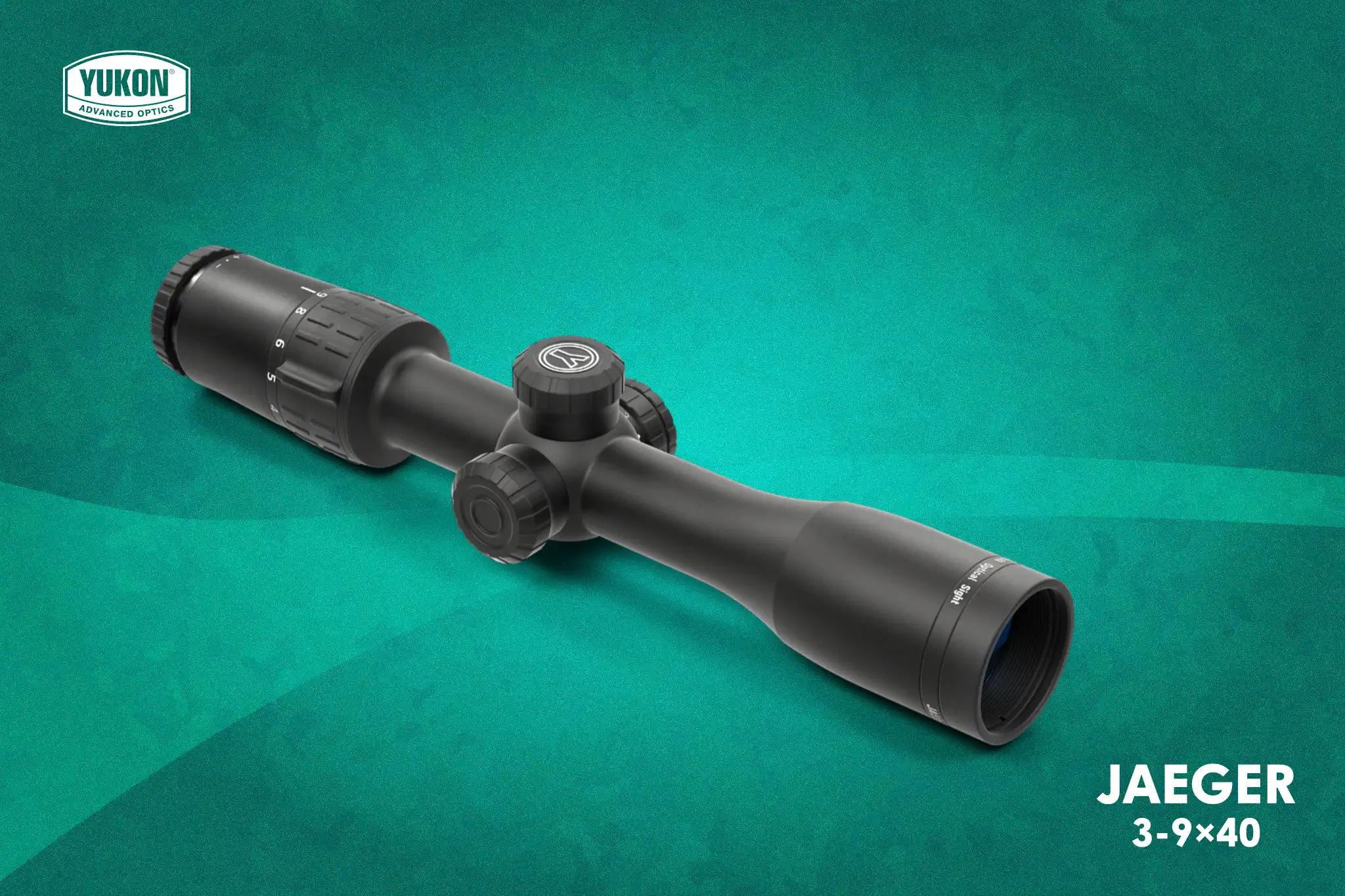

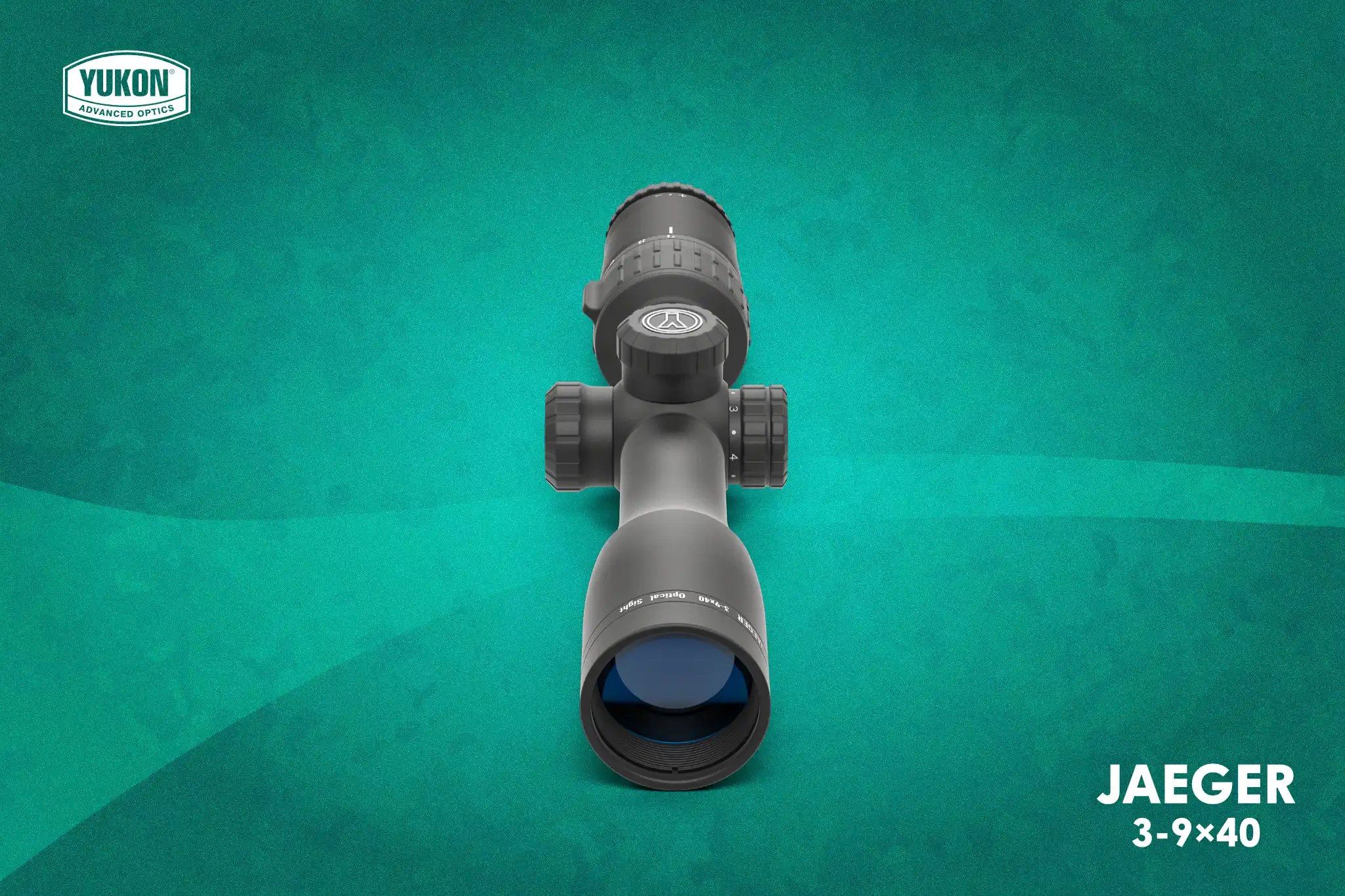

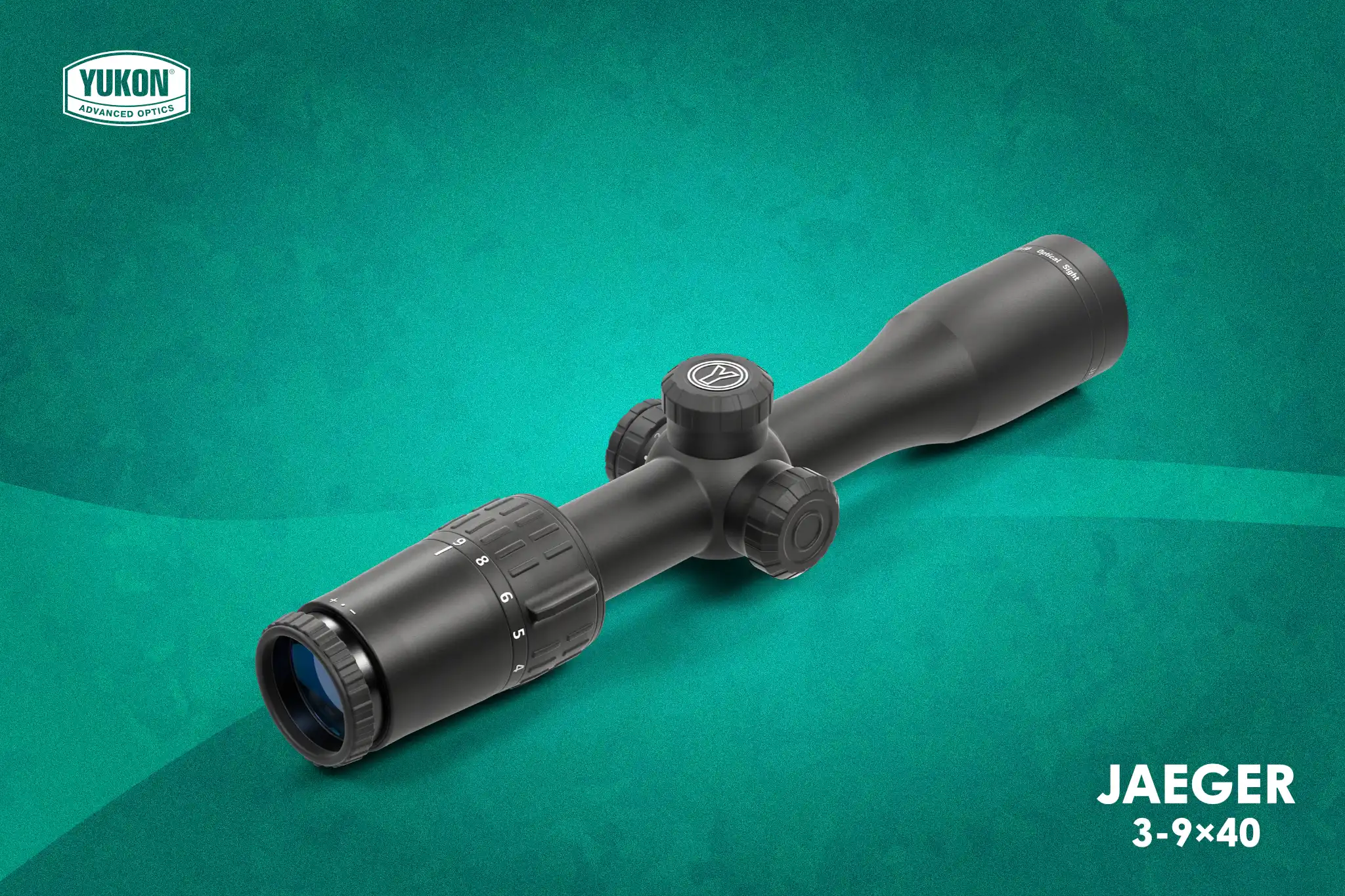

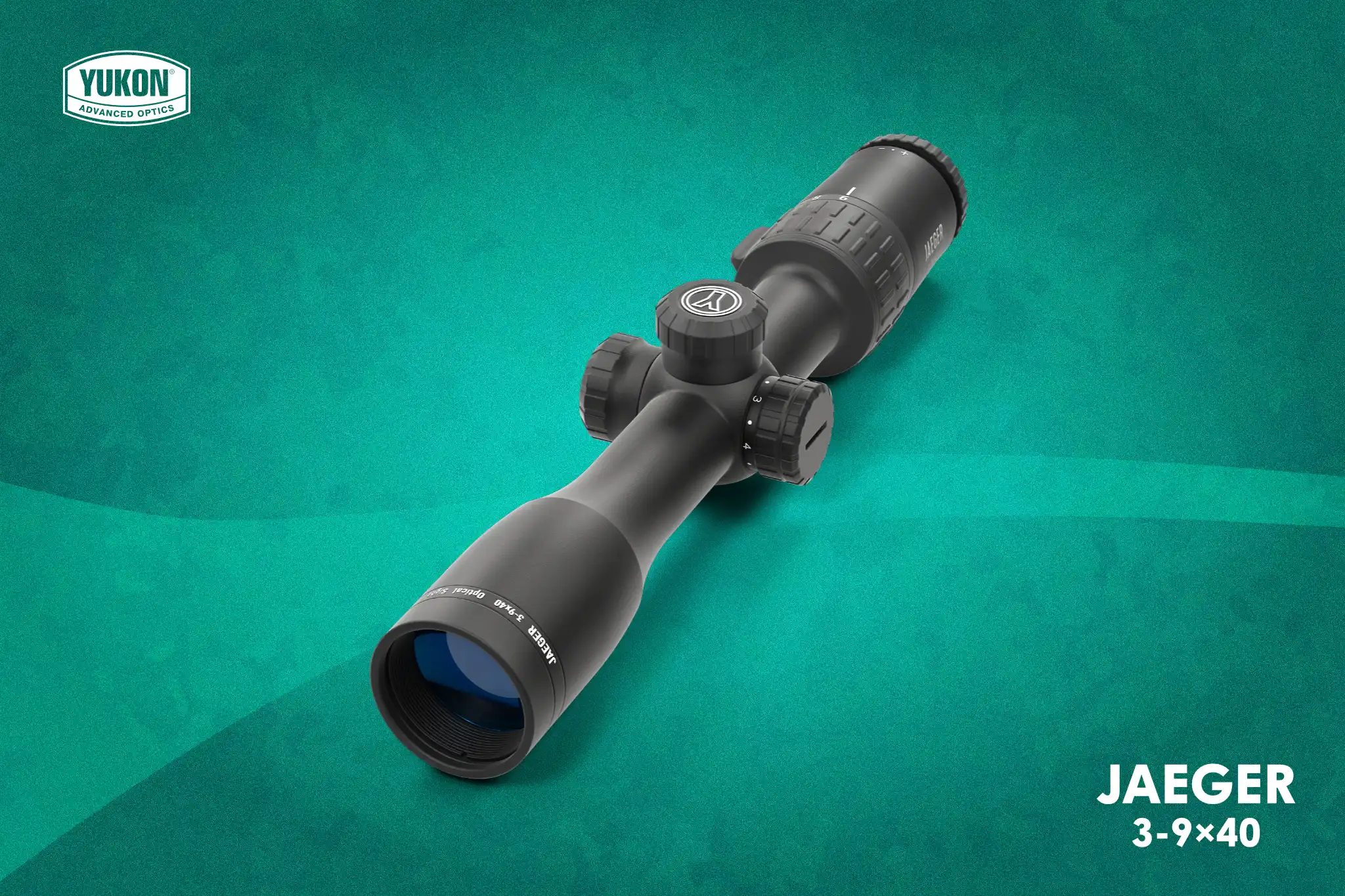

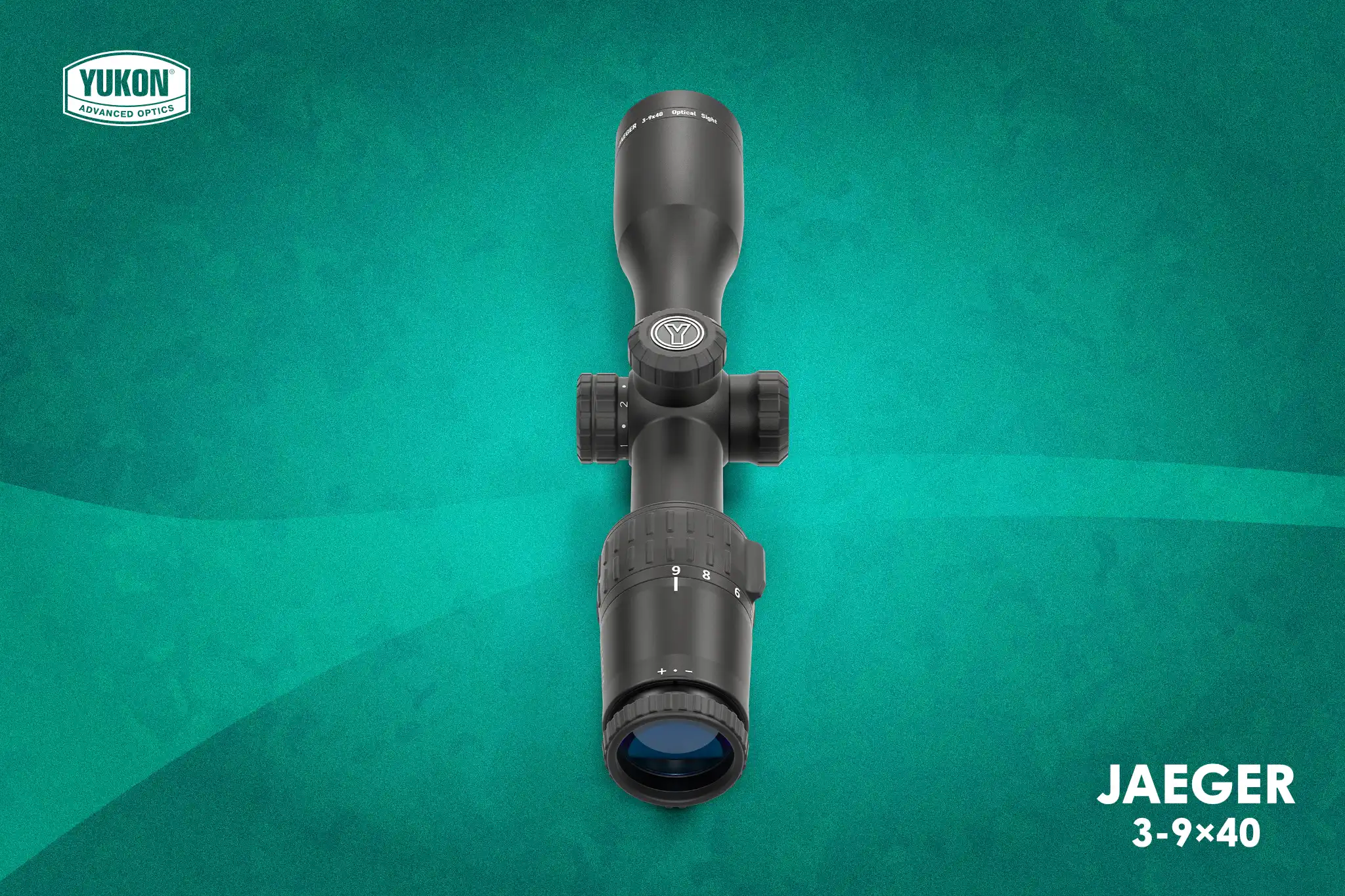

Jaeger 3-9×40 optical rifle scope
The Jaeger 3-9x40 is ideal for stalking and more accurate shooting at longer ranges. The 3–9x magnification range is one of the most popular and traditional choices in the world for general hunting. It is not particularly well suited to driven hunts, as the 3x minimum magnification makes quick aiming at close range difficult.
- Magnification: 3–9x
- Lens: 40 mm
- Field of vision: 6,7°...2,5°
- Diameter: 30 mm
- Weight: 620 g
4 in stock
Jaeger 3-9×40 riflescope
The 3–9x magnification range is one of the most popular and traditional choices in the world for general hunting. This scope is not particularly well suited to driven hunts (the 3x minimum magnification makes quick aiming at close range difficult), but it is excellent for stalking and more accurate shooting at longer ranges. The 40 mm lens keeps the scope's dimensions reasonable while providing a good image in daylight.
Yukon Jaeger sights have a reinforced waterproof (IPX7) body and precisely coated optics that provide a bright and clear image across the entire field of view.
The sight has a reticle with an illuminated centre, convenient adjustment turrets, a rubber magnification ring with a good grip, and fast focusing. Thanks to these features, the Jaeger sight offers exceptionally good performance and reliability in its price range.
IPX7 weather and waterproof rating
The Jaeger sight can be used in any moisture conditions, for example in heavy rain or a snowstorm (the device has an IPX7 rating in accordance with the IEC 60529 standard).
Nitrogen-filled housing
The Jaeger sight can be used in any moisture conditions, for example in heavy rain or a snowstorm (the device has an IPX7 rating in accordance with the IEC 60529 standard).
The nitrogen fill protects the optics and the interior of the body from fogging caused by temperature fluctuations. When moving from the cold into a warm room, condensation does not form on the lenses or internal parts, because the moisture-free nitrogen keeps the glass clean from the inside.
Because there is no moisture or oxygen inside the body, mould and fungus are also prevented from forming on the inner surfaces of the lenses.
Robust body
Jaeger riflescopes are designed to work together with the night vision and clip-on thermal attachments.
High shock resistance
The sight has very good shock and vibration resistance. All Jaeger models can be used on large-calibre rifles, shotguns and air rifles.
Narrow field of view, longer shooting range
The 3-9x magnification of this scope makes your rifle excellent for stalking and more accurate shooting at longer ranges.
Resettable adjustment turrets
The design of the elevation and windage adjustment turrets allows them to be easily set to the zero position with a single click after the sight has been zeroed.
Aiming point / reticle
The reticle (T01i) of Jaeger sights is located on the second focal plane — this means that the aiming point remains thin at every magnification and does not obscure the target. The centre of the reticle is illuminated. The adjustment wheel has intermediate off positions, which allow the illumination to be switched off quickly and later returned to the same brightness level. Illumination can be adjusted over a wide range, and the sight also has a separate operating mode for front-mounted night vision and thermal devices.
| Lens | 40 mm |
|---|---|
| Enlarge | 3-9× |
| The field of vision | 6,7°...2,5° |
| Click value | 7.25 mm @ 100 m |
| Eye-opening | 90 mm |
| Exit pupil | 13,5...4,5 mm |
| Dioptre adjustment | ±2.5 dpt |
| Reticle | T01i (illuminated, focus level 2) |
| Mounting diameter | 30 mm |
| Class of protection | IPX7 |
| Impact resistance | 7000J |
| Weight | 620 g |
| Dimensions | 318mm (length) |
