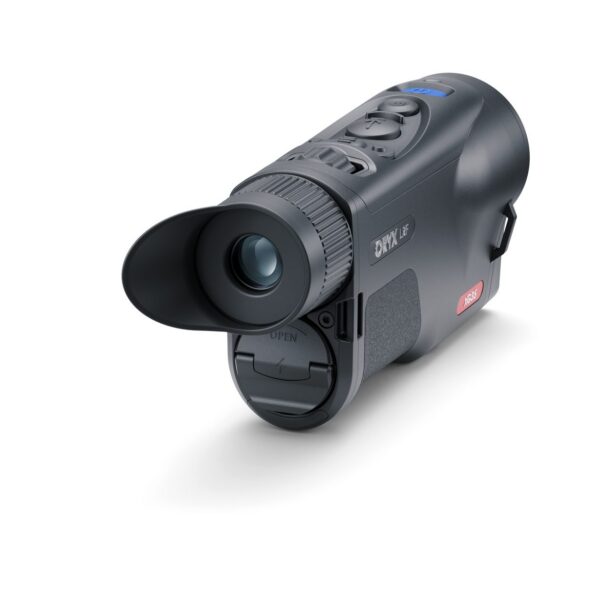

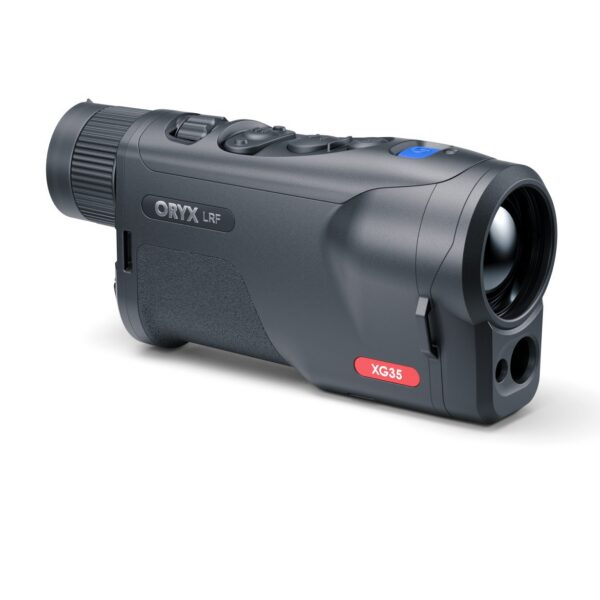

Pulsar Oryx LRF XG35 thermal camera

Taskuformaadis soojuskaamera – Oryx LRF XG35

The Oryx LRF XG35 pocket thermal camera stands out from Pulsar's other compact thermal monoculars above all for its combination of compactness, IP67 protection, true one-handed ergonomics and a 1500 m LRF. It fills the niche between a pocket-sized device and one with a premium sensor and rangefinder, making it suitable for hunting, wildlife observation and professional use alike.

The Oryx LRF XG35 pocket thermal camera, launched in 2025, is a compact thermal monocular that replaces the earlier Axion 2 LRF series in terms of compactness and ergonomics.

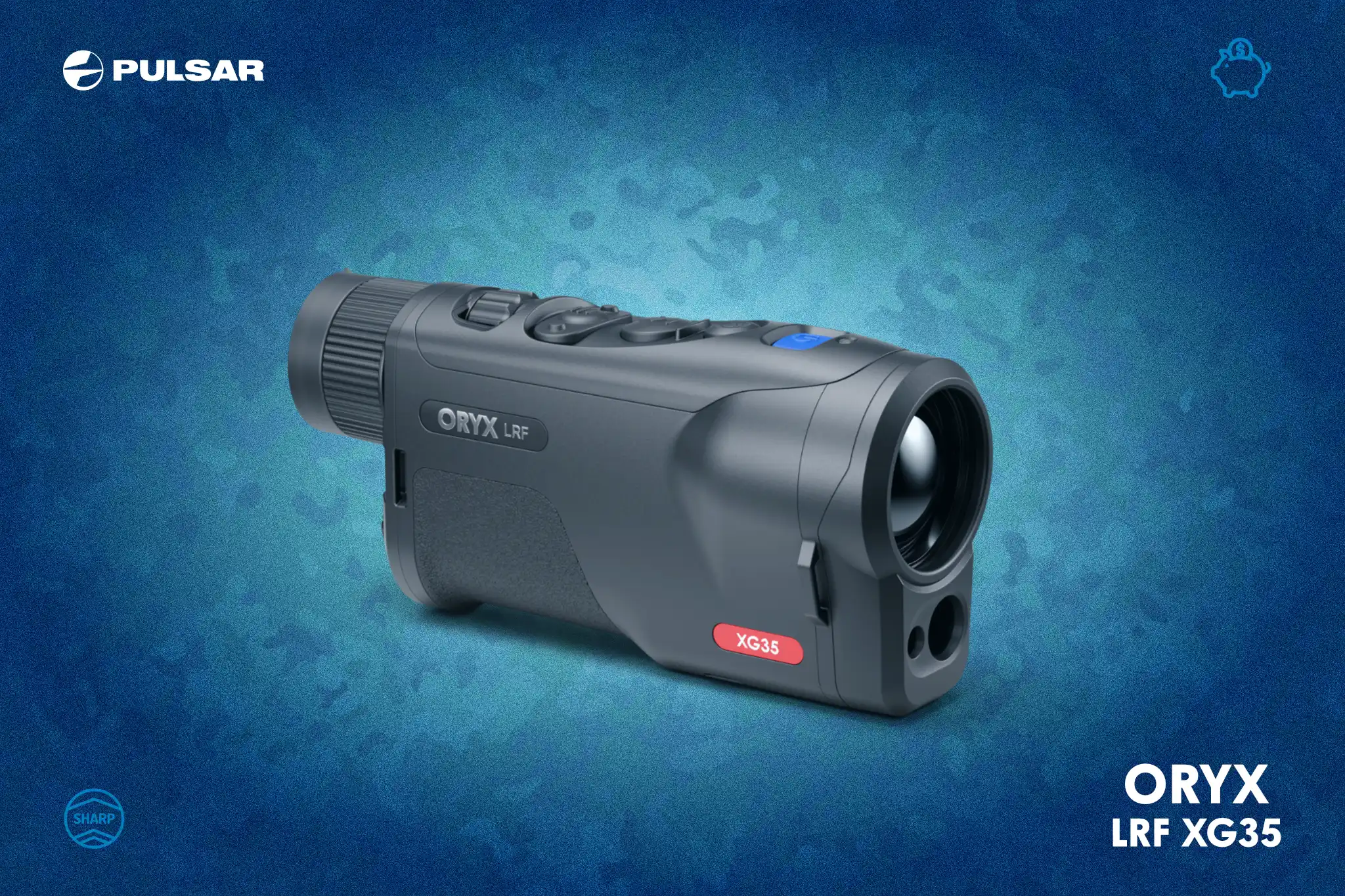

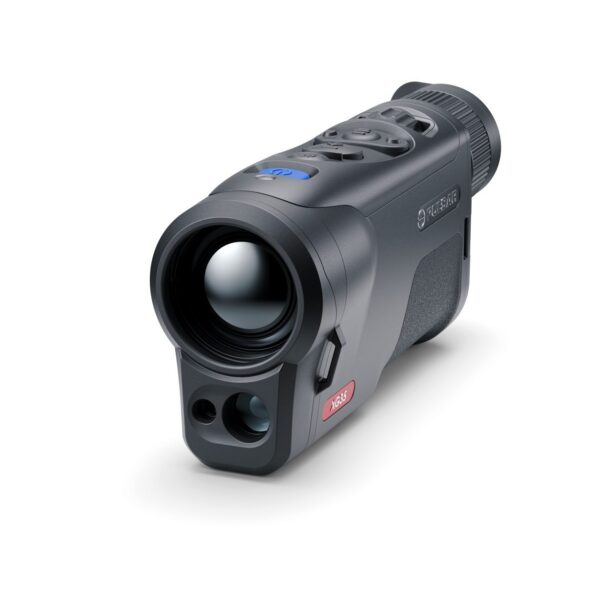

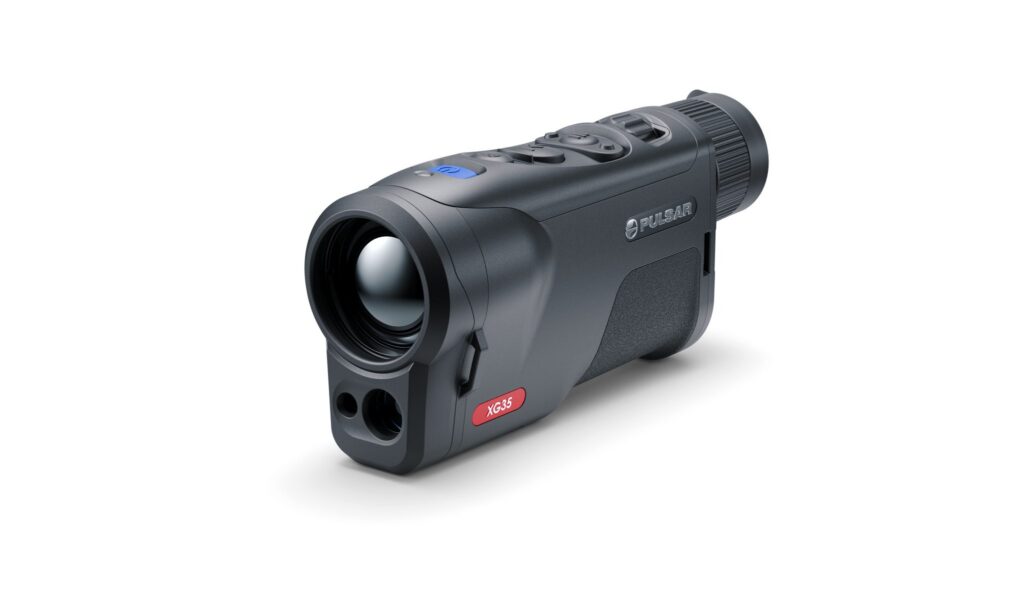

Compact design with integrated LRF

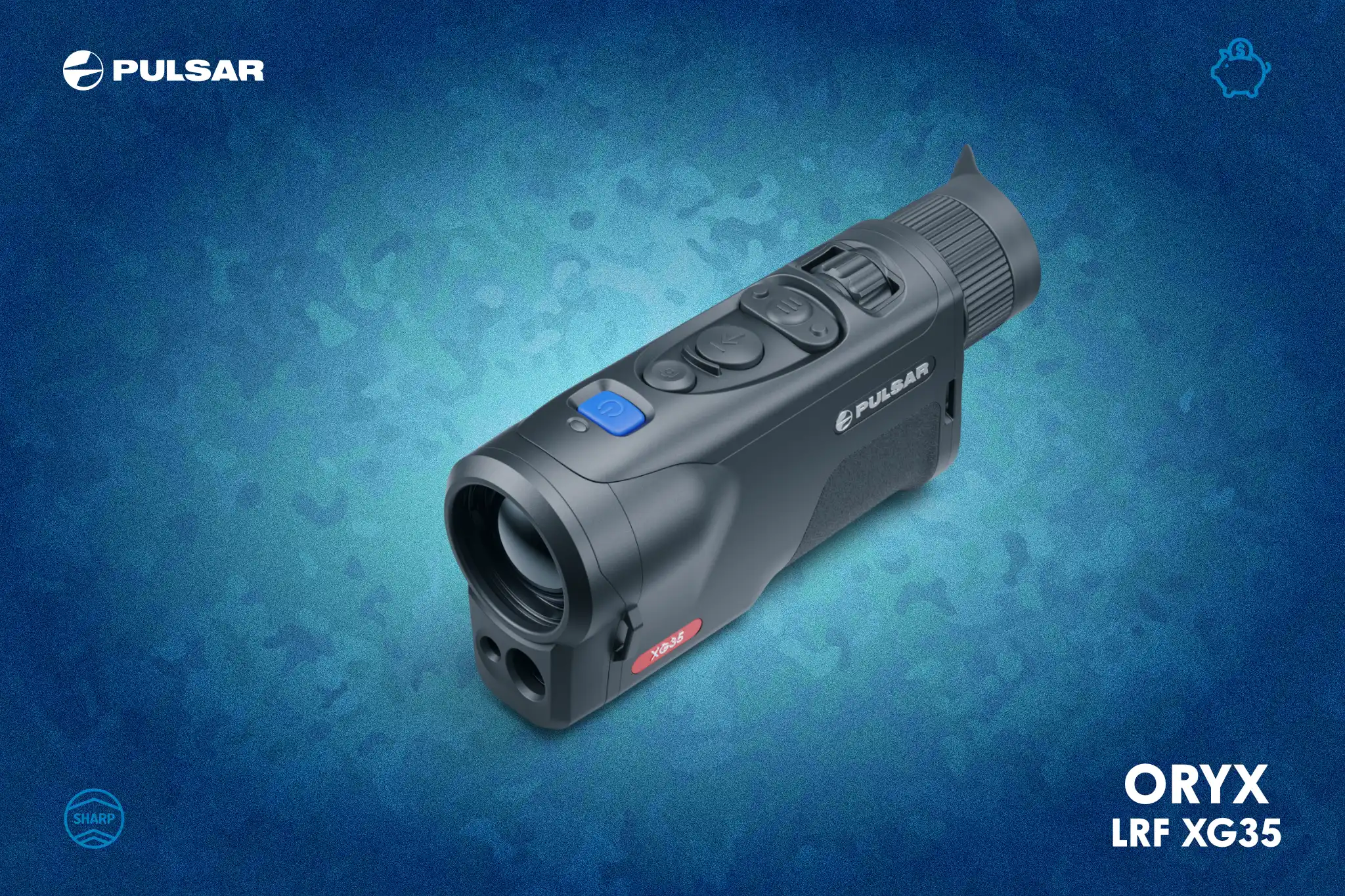

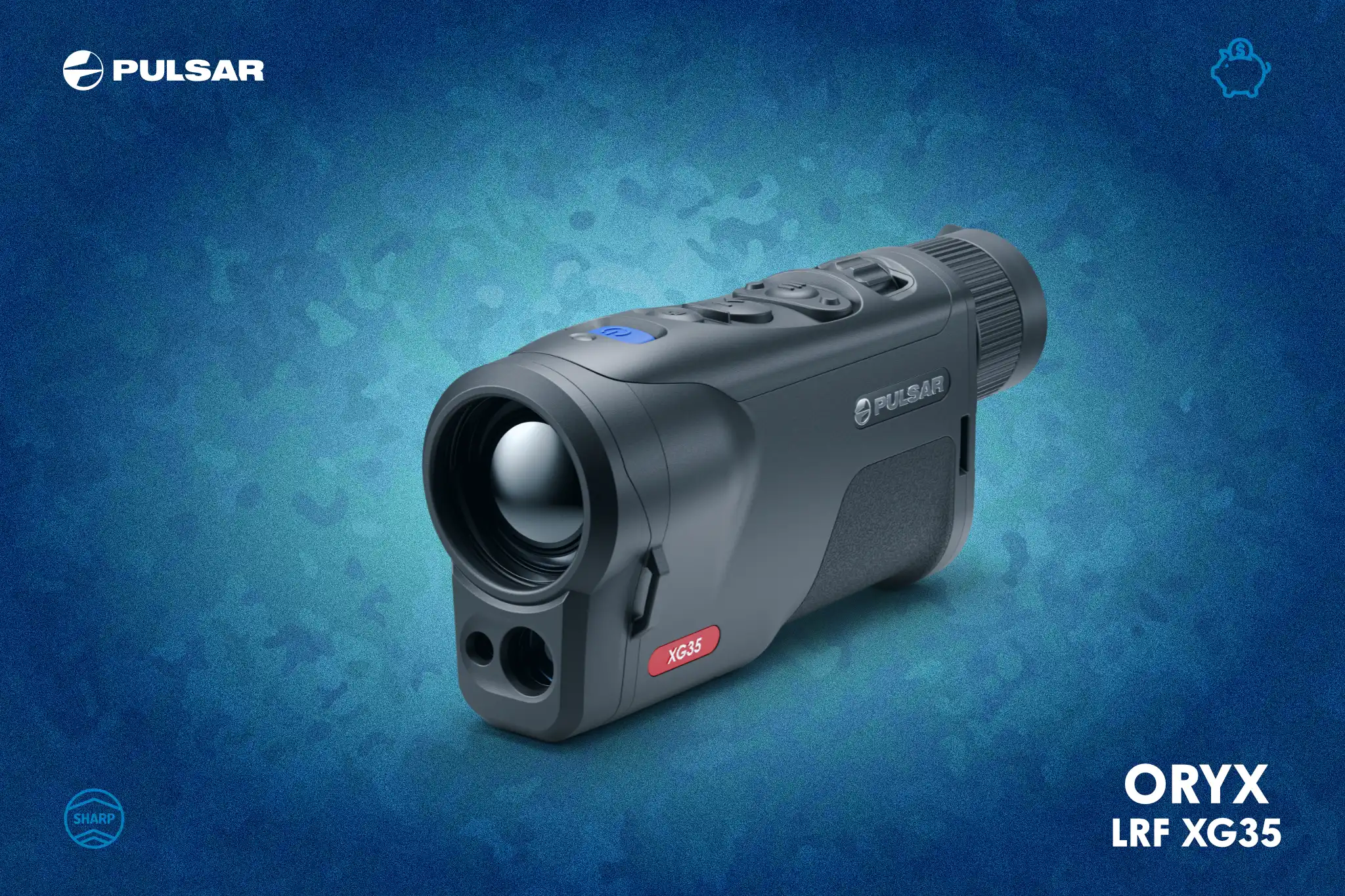

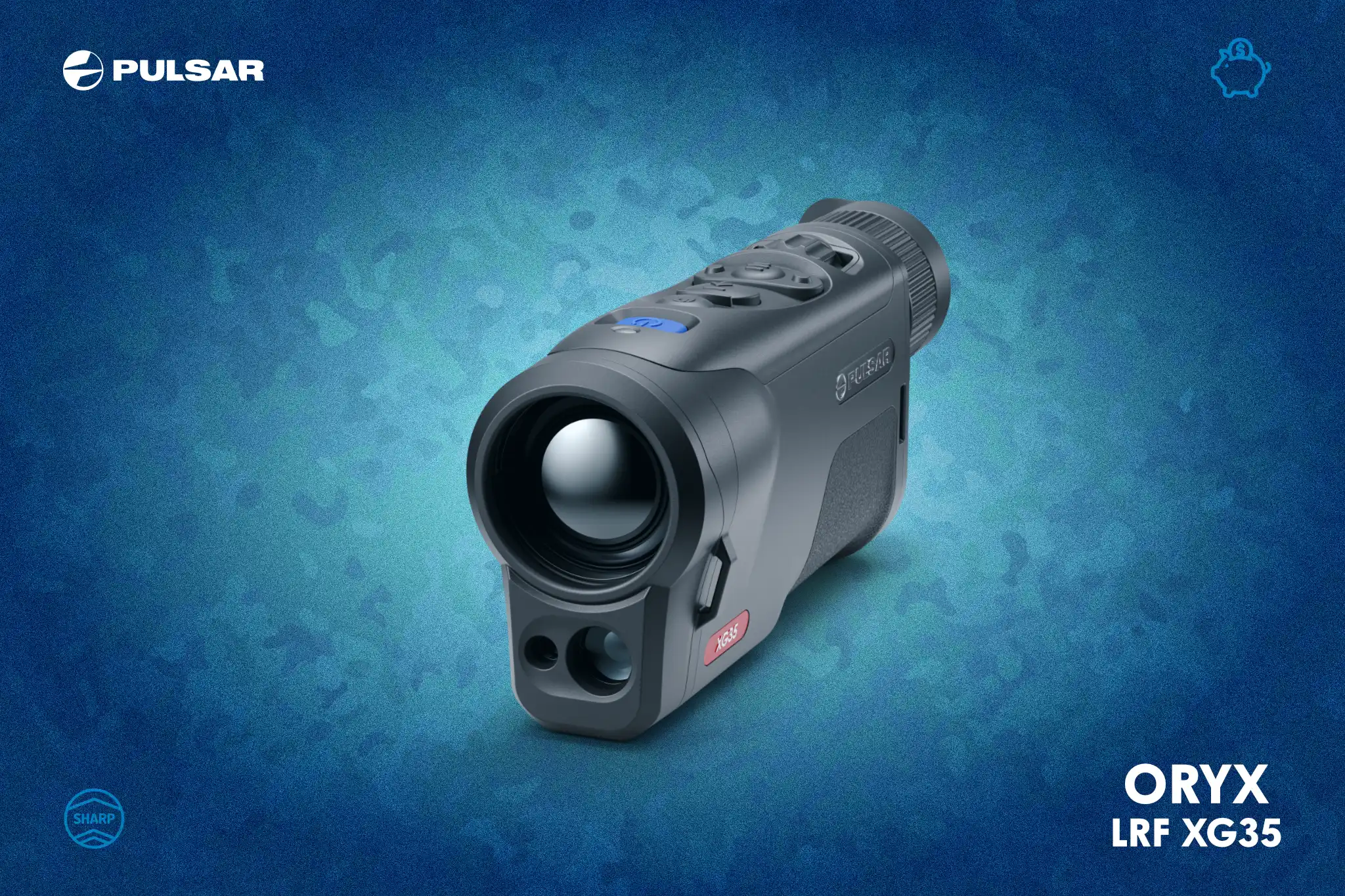

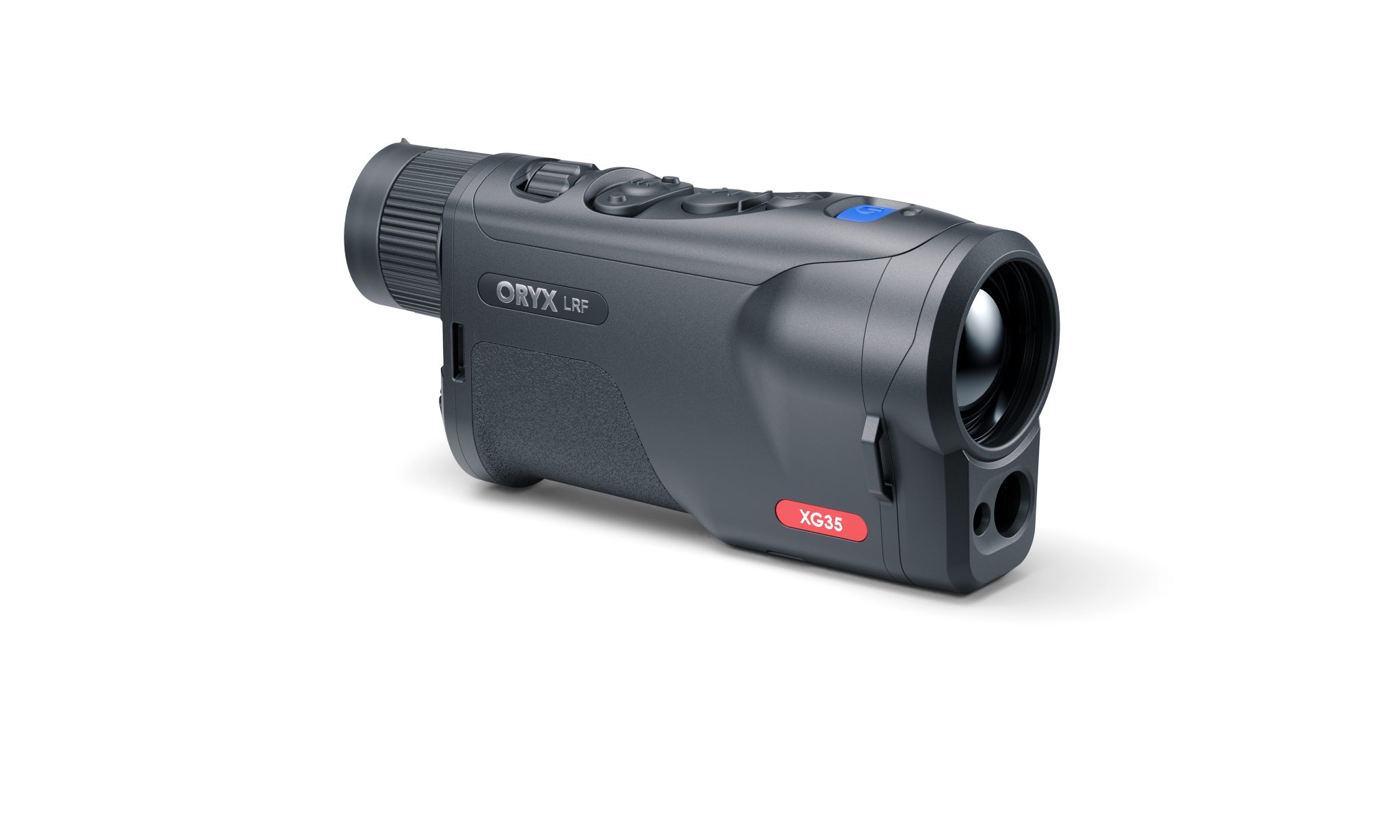

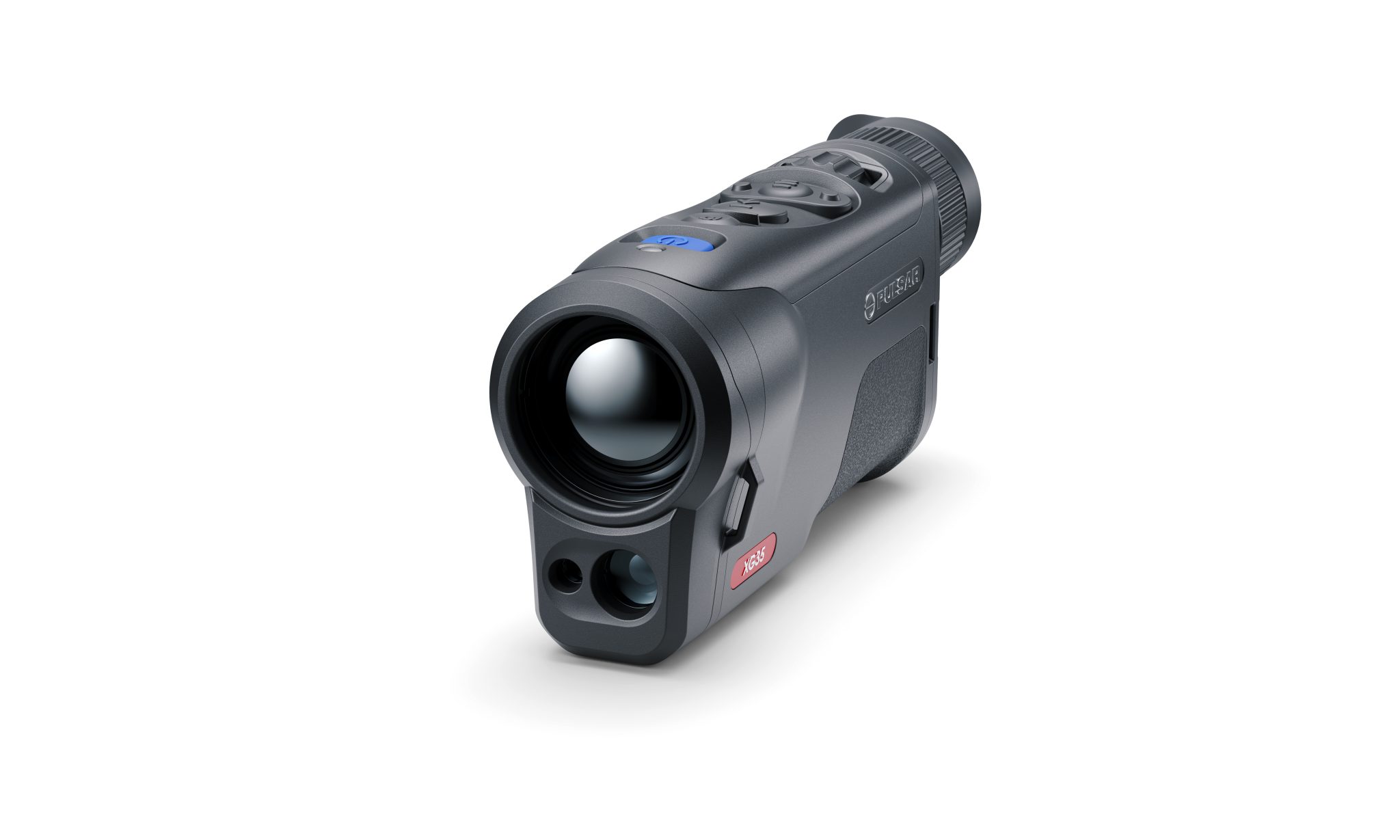

Taskutermokas on mõõtmetega 179×52× 77 mm ja kaalub koos akuga ~500 g. Laserkaugusmõõtja on paigutatud objektiivi alla, mistõttu korpus on märgatavalt saledam ja kompaktsem kui varasematel Axion 2 LRF mudelitel. See muudab selle üheks kompaktsemaks 640×480@12μm anduri ja sisseehitatud LRF-iga termopikksilmaks turul.

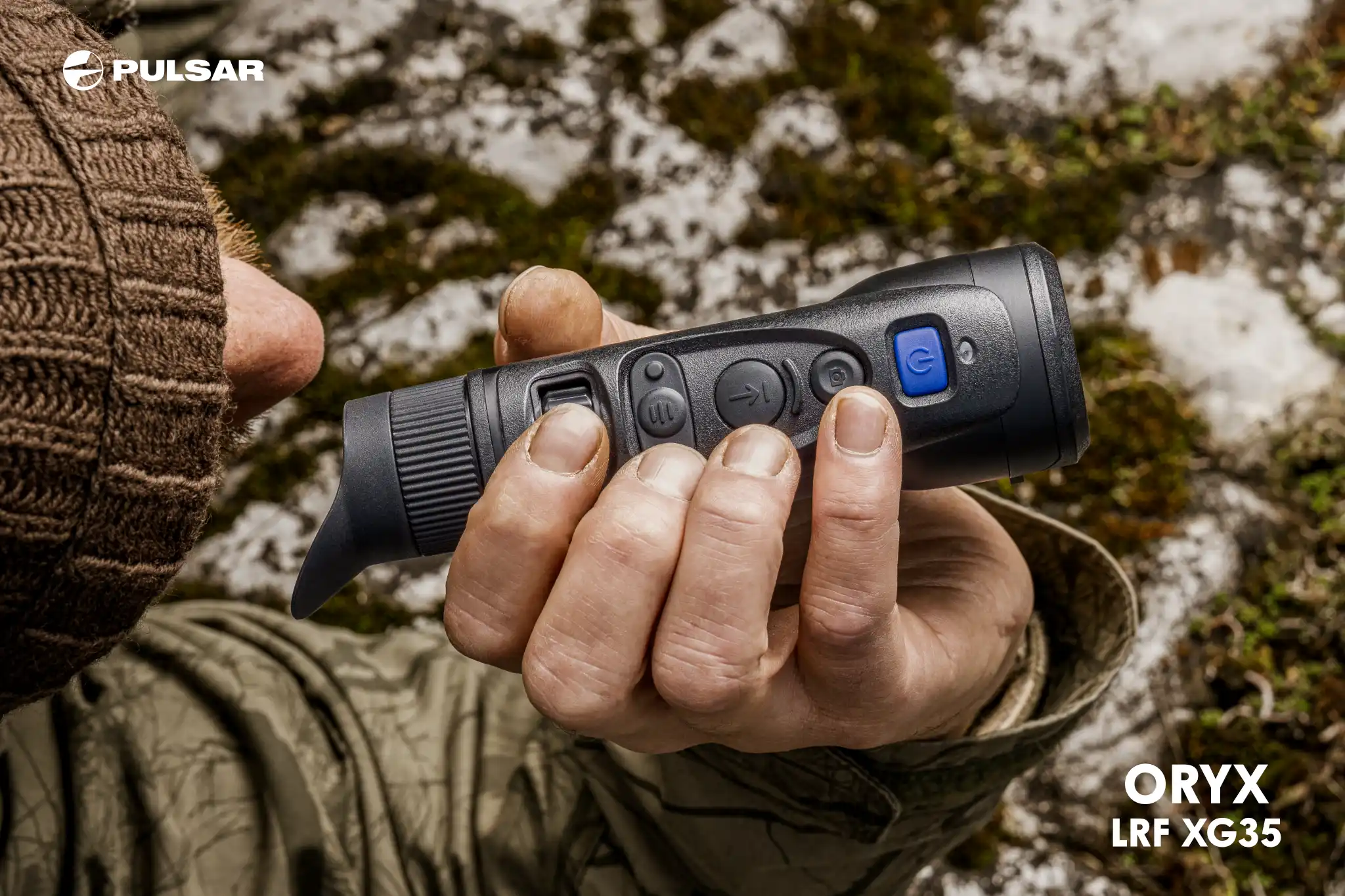

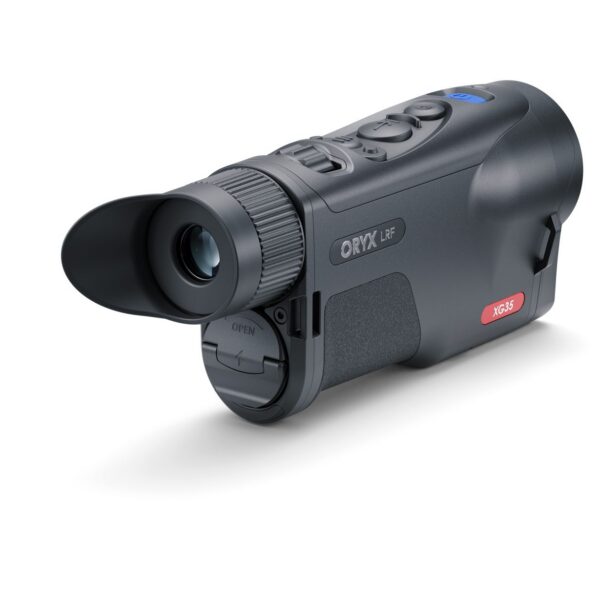

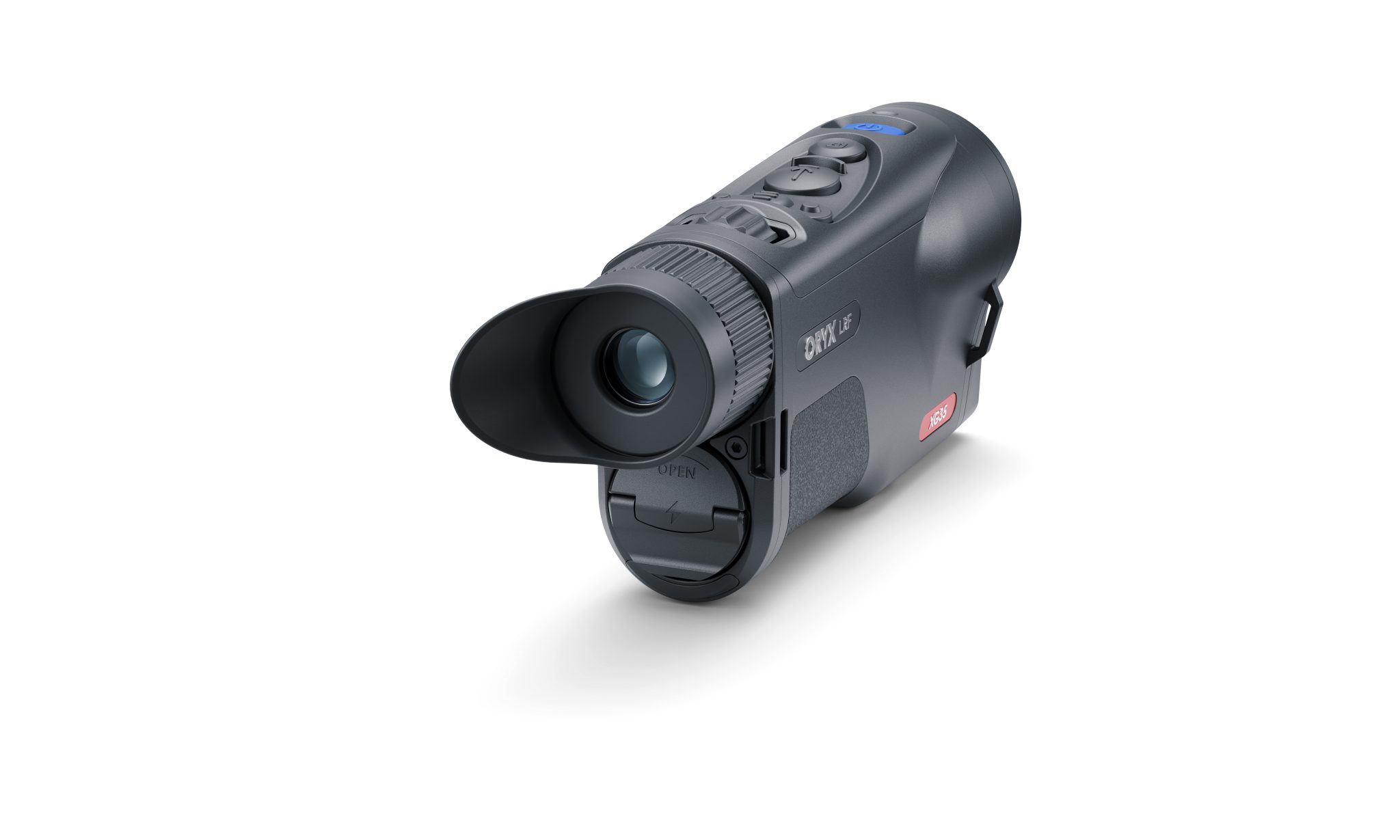

One-handed operation

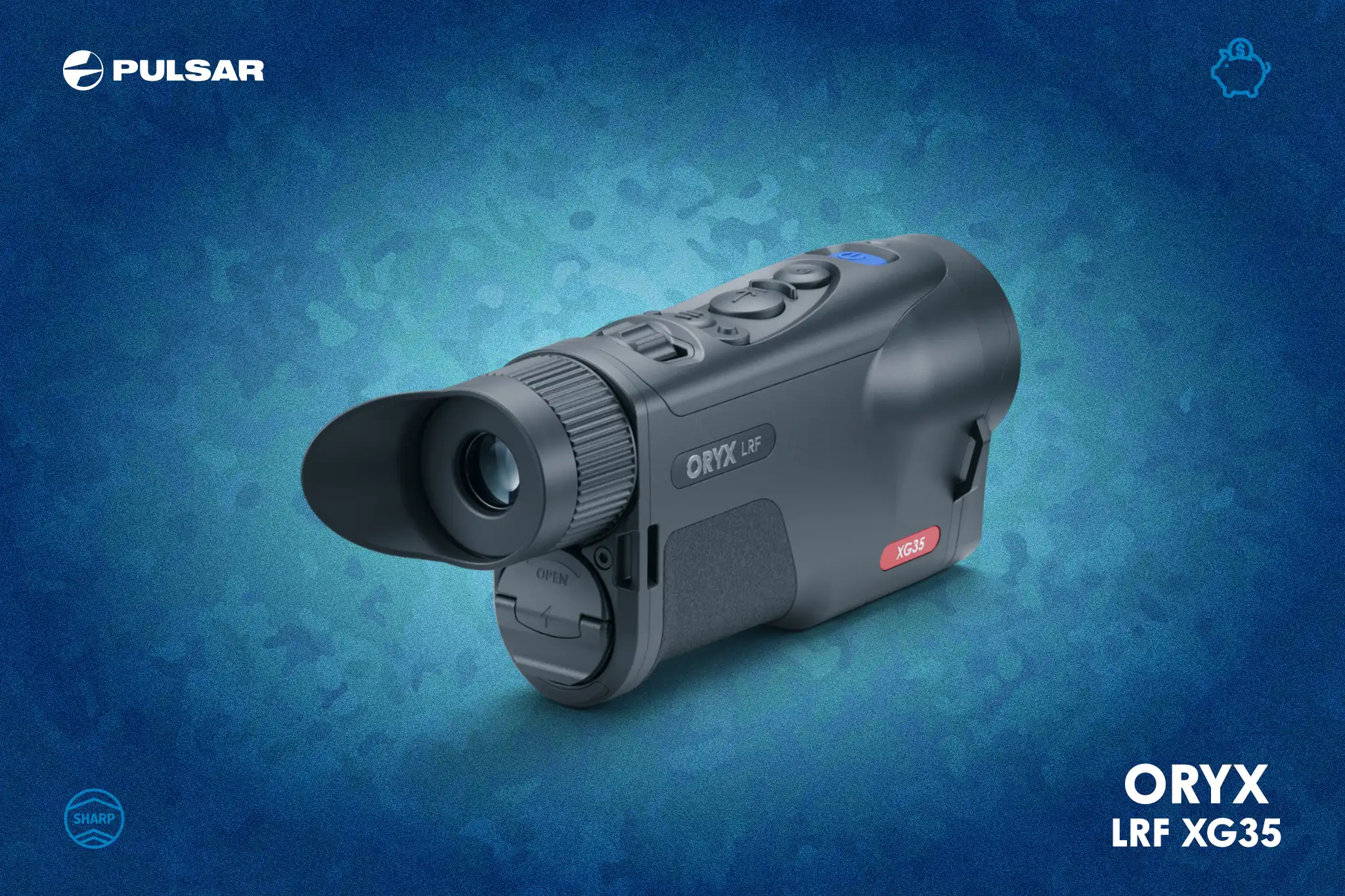

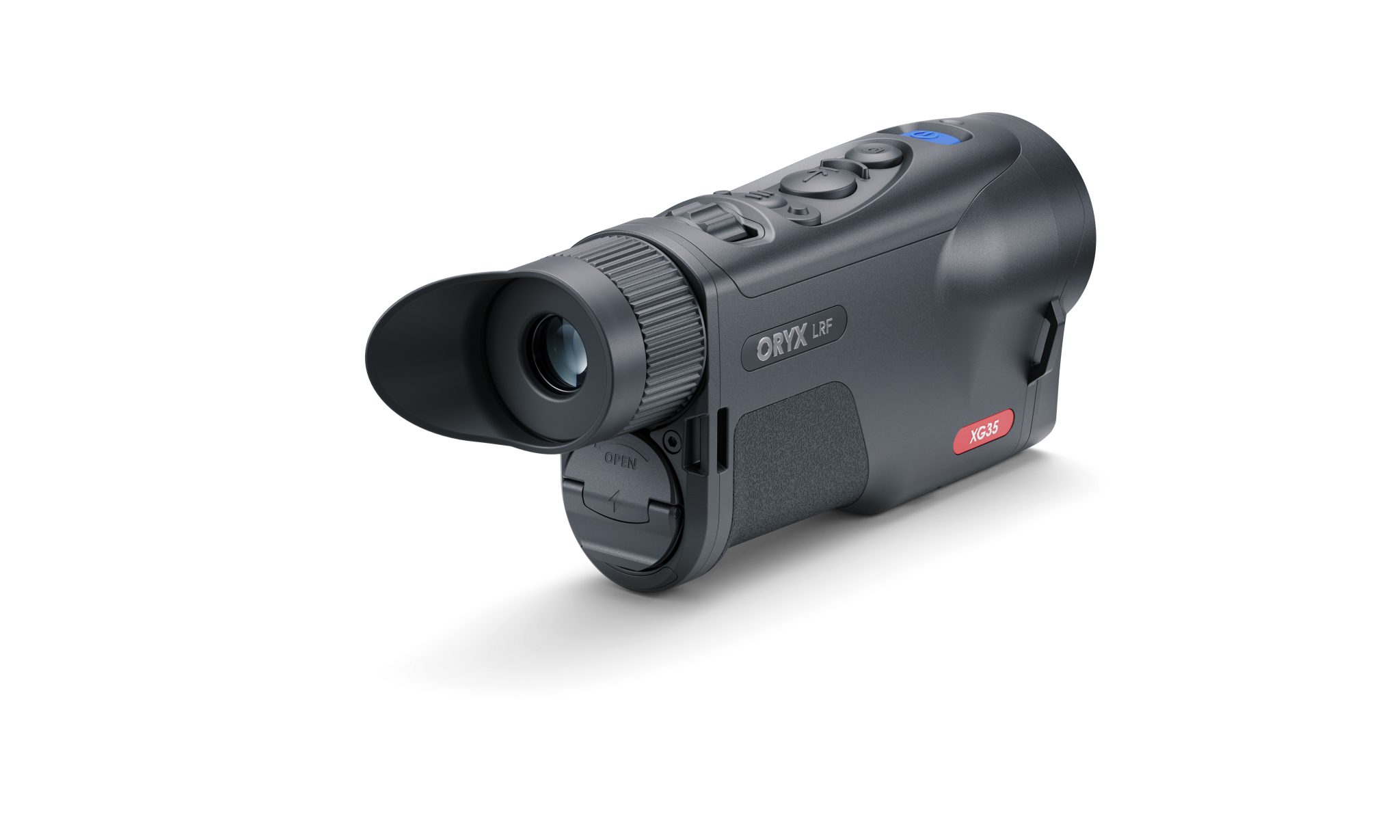

A genuinely one-handed, ambidextrous design for left- and right-handed users. The focus wheel is located near the eyepiece, allowing you to focus and operate the device with one hand. The symmetrical magnesium alloy body, repositionable hand strap and haptic feedback on the buttons support comfortable long-term use with either hand.

IP67 protection rating

The housing is fully dustproof and waterproof (it withstands immersion to a depth of 1 metre for 30 minutes). This is a significant step forward compared with earlier Pulsar pocket thermal cameras, which usually carried an IPX7 rating.

High-sensitivity thermal image with stabiliser

Pulsar's sensitivity boost technology and digital image stabiliser deliver a detailed, high-contrast image even in poorer conditions.

• Sensor: Lynred 640×480@12 μm, sNETD <20 mK (anduri NETD < 40 mK)
• Lens: 35 mm f/1.0.
• Display: AMOLED 1024×768, 50 Hz
• Magnification: 2,5× base, digital zoom up to 20×.
• Field of view: 12,5° (~21,9 m @100m).
• Detection range: up to 1800 m.

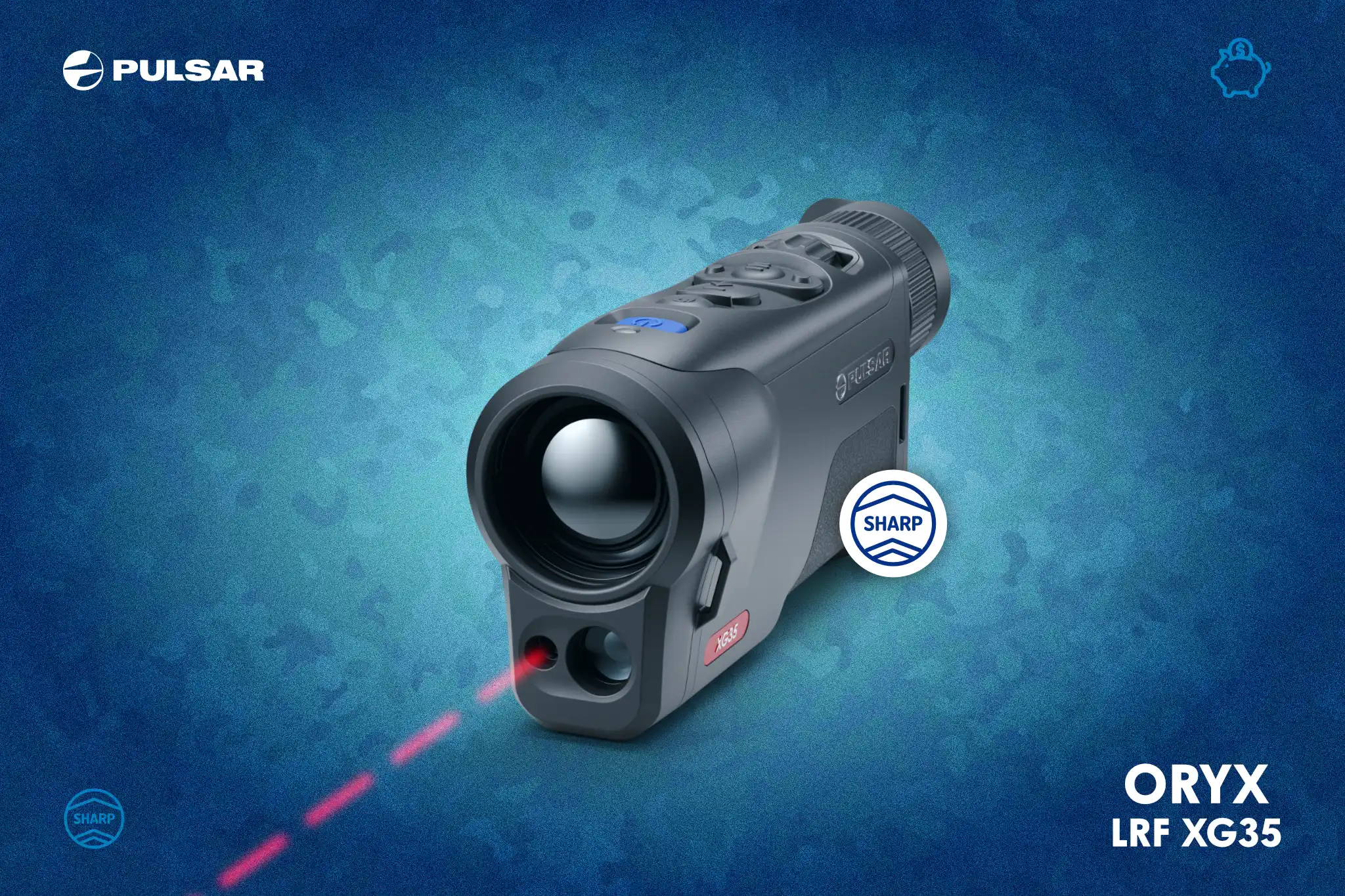

Powerful laser rangefinder

The Oryx LRF XG35 pocket thermal camera is equipped with a powerful laser rangefinder with a measuring range of up to 1500 m and an accuracy of ±1 m. Improved penetration in fog and adverse weather. Single measurement and continuous scanning modes are available.

Dual battery system with long operating time

The internal battery (3200 mAh) plus a removable APS5 battery (4900 mAh) allow up to 12 hours of continuous use. The external battery is hot-swappable (it can be changed without switching the device off). USB-C charging (including Power Delivery support).

Other important technical features

• Display: 1024 × 768 AMOLED HD.
• 64 GB internal memory, video and photo recording (1024 × 768, .mp4 / .jpg) with sound.

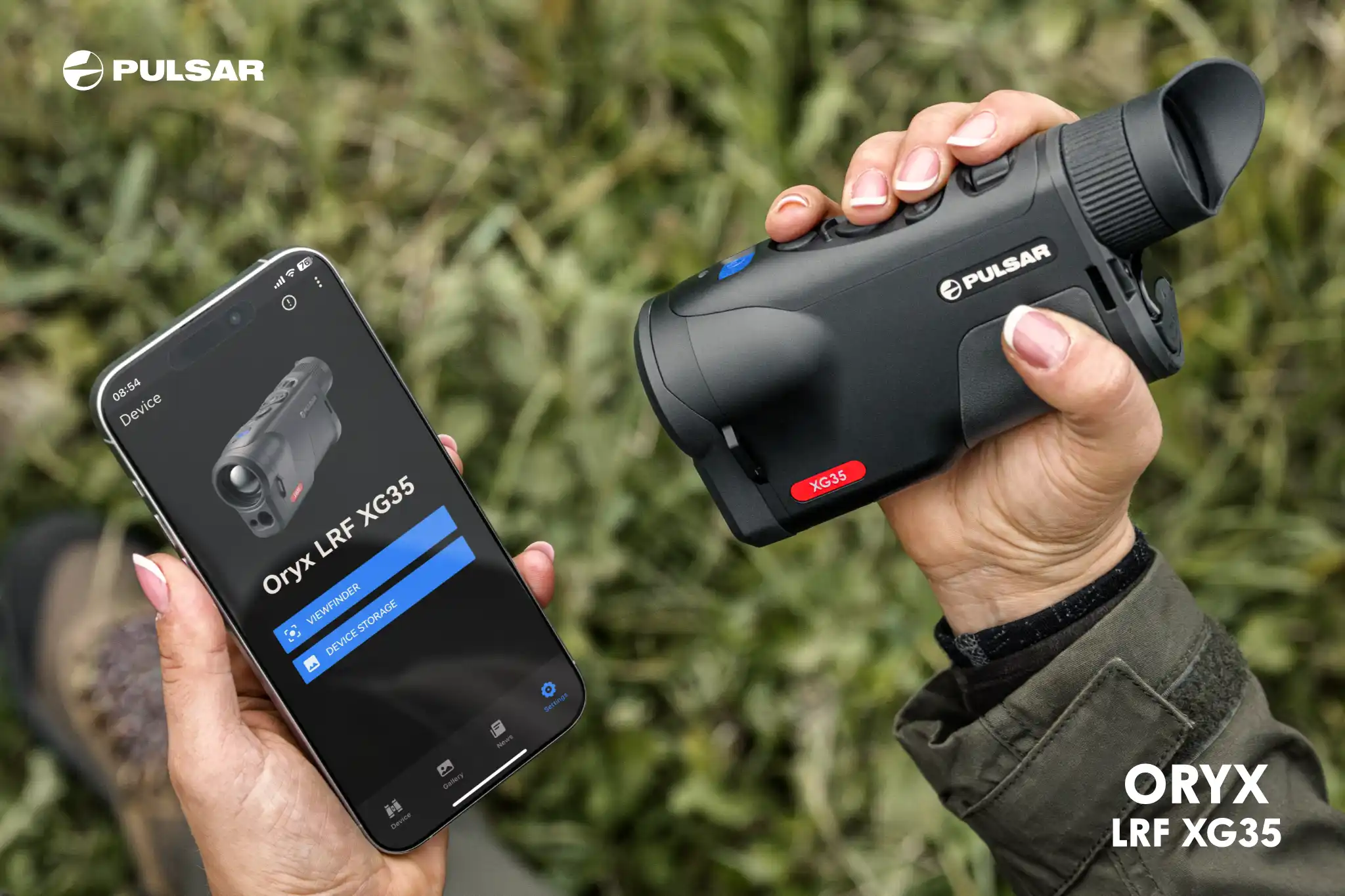

• Wi-Fi (2,4/5 GHz) and Stream Vision 2 / Stream Vision Ballistics support.
• Operating temperature: –25 °C to +40 °C.
• Magnesium alloy housing with good heat dissipation.

Summary – Oryx LRF XG35

All in all, the Oryx LRF XG35 stands out from Pulsar's other compact thermal monoculars above all for its combination of compactness, IP67 protection, true one-handed ergonomics and a 1500 m laser rangefinder. It fills the niche between a pocket-sized device and one with a premium sensor and rangefinder, making it suitable for hunting, wildlife observation and professional use alike.

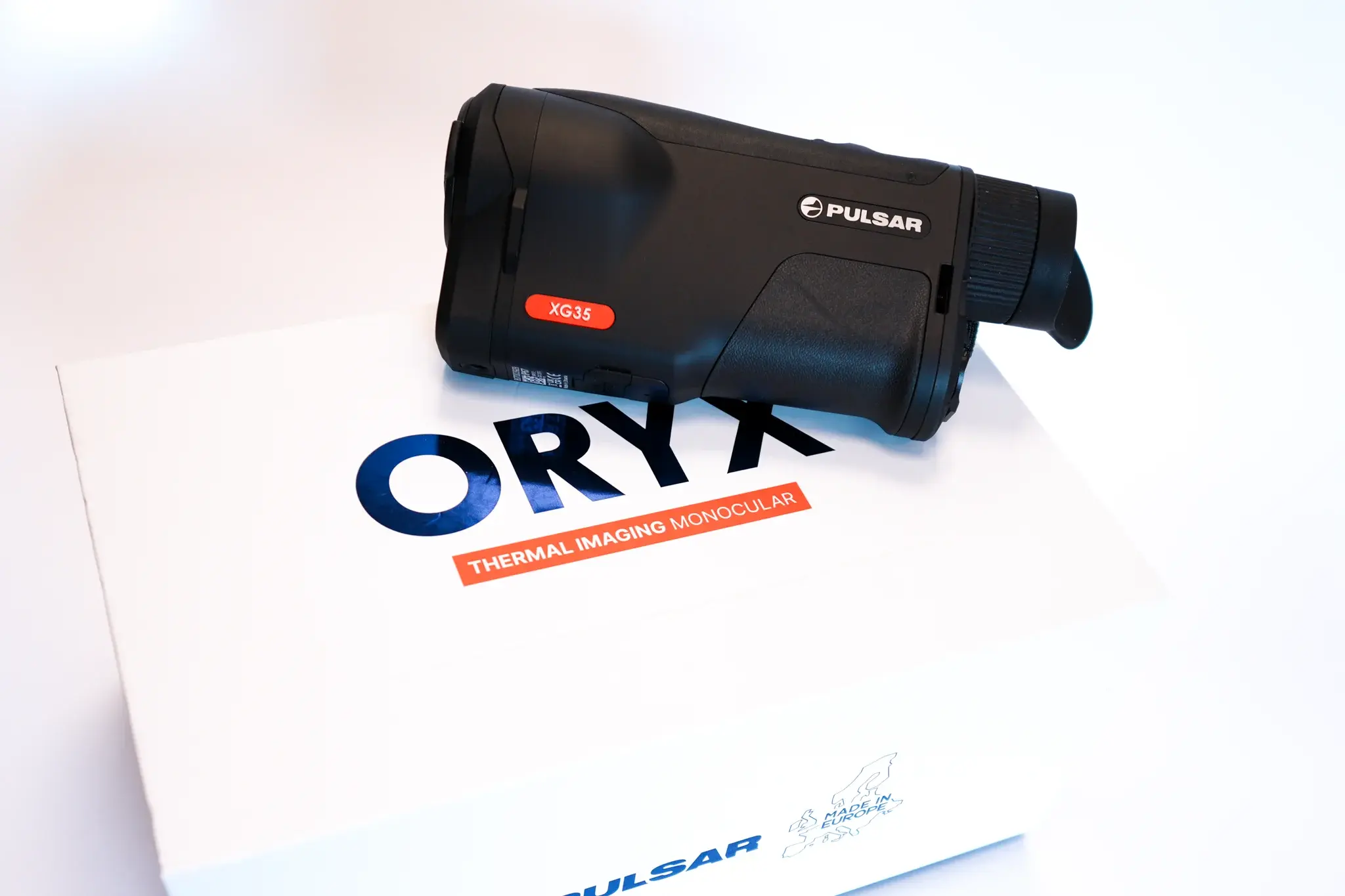

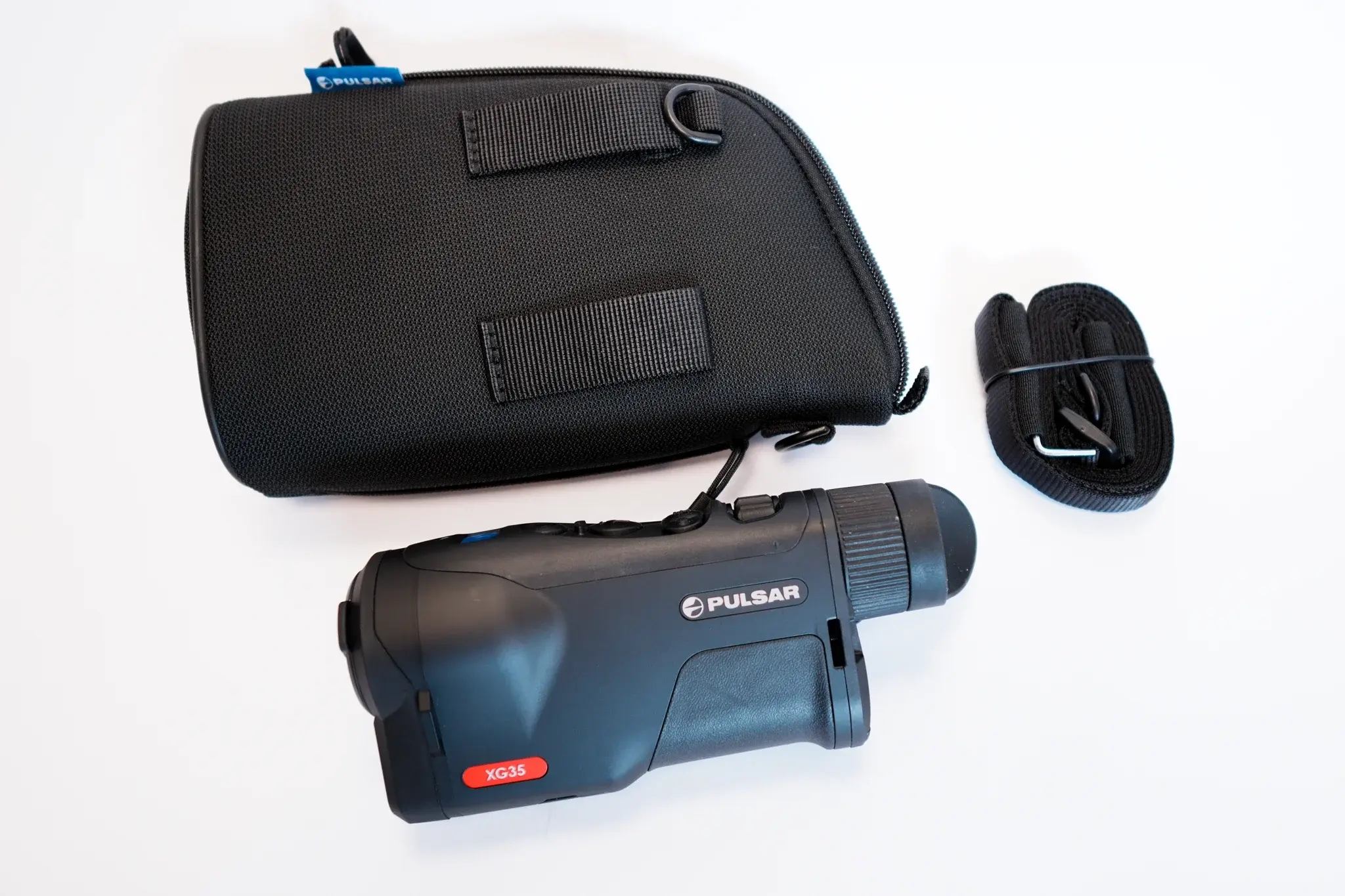

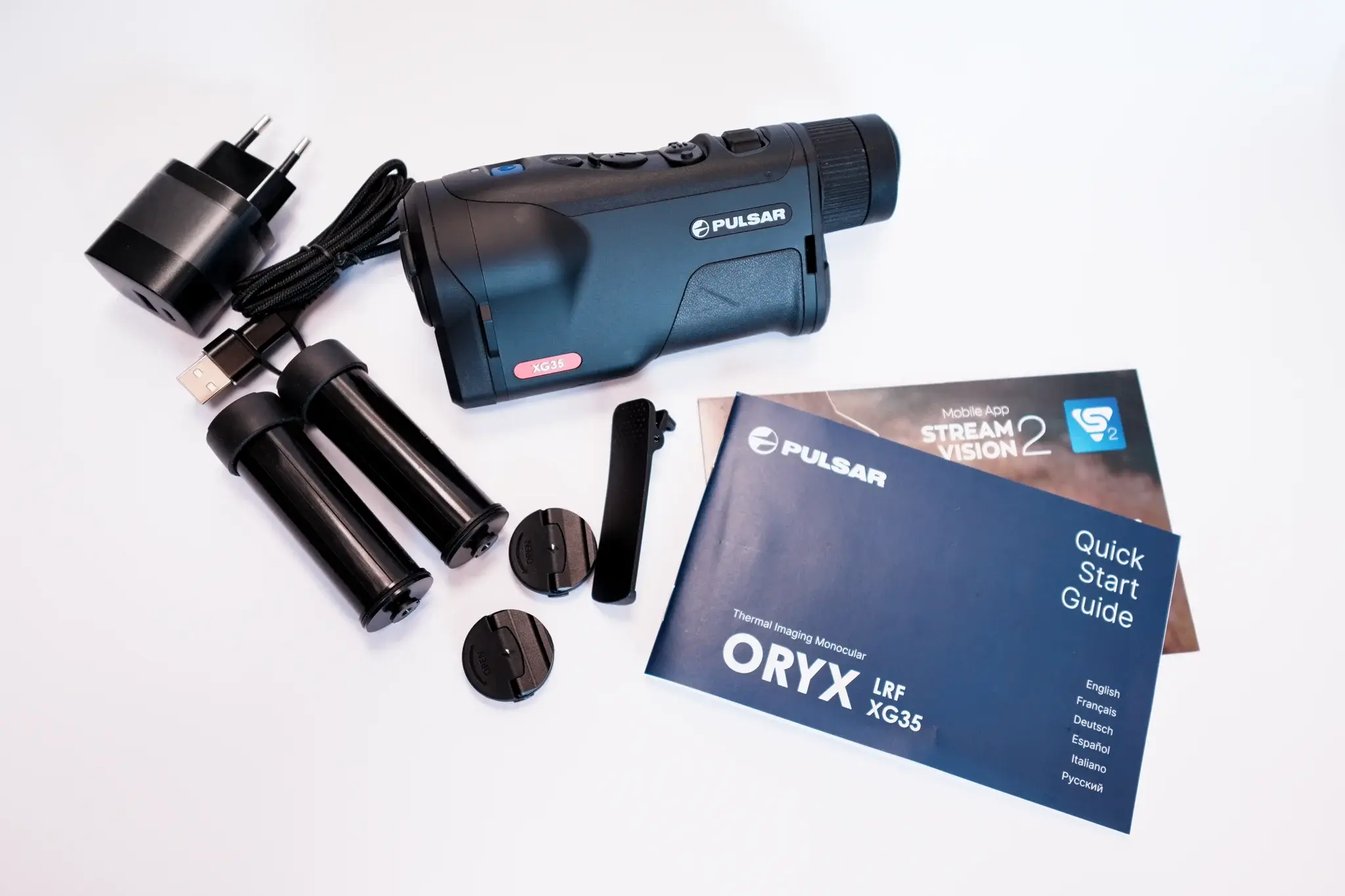

Set

Pulsar Oryx LRF XG35 the thermal monocular kit includes:

• Pulsar Oryx LRF XG35 pocket thermal camera,
• APS5 (4900 mAh) battery with protective cap,
• power adapter,
• USB Type-C cable with USB Type-A adapter,
• carrying bag,
• hand strap,
• user manual,
• lens cleaning cloth and
• warranty certificate.
